PWW-30GF3-WP3.2-WPG41

Gen-set specifications

Standard Features

• ECU
• DC12 Electric starter
• WHC6120CAN
• Closed water-cooled
• IP23
• H type insulation
• Air filter
• Muffler
• Circuit Breaker
• Starting batteries
• with connective wires
• Radiator
• Oil Drain Valve
• Forklift Groove
• Shock Absorber
• Color: Weichai blue (B,F)/beige canopy and black chassis (L)
• Packaging: wrapping film

Options

• Voltage 380V/415V
• Voltage 440V/480V
• Single Voltage 220V/230V
• Automatic Transfer Switch
• Alternator heater
• Engine Heater (water)
• External fuel tank（1000L/1500L）
• Auxiliary winding

Engine

• Weichai WP3.2 series, 4 cylinder, in-line 4 stroke, radiator cooled engine
• Well-designed air handling system with
• Dry type, Replaceable paper element air cleaner with restriction indicator
• Optimized turbocharger for increased altitude capabilities
• High efficiency, large heat area intercooler, reduce the air temperature after the intercooler
• Fuel system with ECU
• Fuel system with rotary filter
• Oil filter
• 1 x 12 V DC batteries
• Battery charging alternator

Engine specifications

Control Module Specifications

The WHC6120CAN is an Auto Mains Failure Control Module

• Back-lit LCD display
• 3 Phase generator and 3 Phase Mains monitoring
• Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level
• Display warning, shutdown and engine status information
• Hours counter provides accurate information for monitoring and maintenance

Alternator

• Brushless type, Screen protected, Revolving field, Self excited alternator conforming to IS/IEC

60034-1

• Best in class efficiency
• Steel casing
• Compact design with sealed bearings for longer life and lesser maintenance
• IP23 standard protection level
• Impregnation on all wound components for better mechanical strength

Alternator specifications

Remarks

Prime power(PRP)

Prime power is defined as being the maximum power which a generating set is capable of delivering continuously while supplying a available electrical load when operated for an unlimited number of hours per year under the agreed operating conditions with the maintenance intervals and procedures being carried out as prescribed by the manufactures.

The permissible average power output, over 24h of operation shall not exceed 70% of the PRP unless otherwise agreed by the RIC engine manufacturer.

Emergency standby power(ESP)

Emergency standby power is defined as the maximum power available during a available electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200h of operation per year with the with the maintenance intervals and procedures being carried out as prescribed by the manufactures.

The permissible average power output, over 24h of operation shall not exceed 70% of the ESP unless otherwise agreed by the RIC engine manufacturer.

Standard Conditions

Standard operating environment: ambient temperature is 5℃~40℃, the altitude is less than 1000m,the relative humidity is less than 90%(25℃), and there is no dust, sand dust, salt fog, mold, condensation environment, etc. If the operating environment exceeds the above requirements, please contact the factory and consult.

Ambient adaptability protection measures for alternators

If you need to use protective measures beyond the standard, please contact the factory and consult.

Special working condition

If the operating conditions of the generator meet the following conditions, please contact the factory and consult.

• Multistage parallel operation
• Grid-connected operation
• As the main power supply, it runs continuously for a long time
• The load includes a high power motor type load
• Capacitive load
• Special ambient such as high temperature, cold and plateau

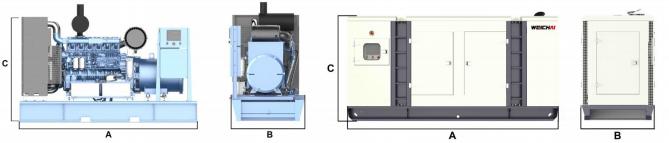

Typical Genset Dimensions

*:Include coolant and oil.

Genset Drawings

Availability Details

• Air intake system: Air filter;
• Cooling system: Closed-loop cooling radiator;
• Fume extraction system: Expansion pipe, muffler;
• Fuel system: Inlet return port connector, fuel filter;
• Lubrication system: Oil pan, oil filter;
• Vibration damping system: Rubber shock absorber;
• Electrical system: Control screen and switch cabinet:
• Silent System: Silencing box/container (silent unit configuration)

Note 1: Silent generator sets (L Series) can be used directly after installation on the ground, without the need for separate installation accessories, and open generator sets require appropriate installation accessories to install fume extraction systems, etc.

Note 2: The factory does not provide on-site installation accessories such as exhaust straight pipe, elbow, radiator shroud, etc. to the unit itself. The buyer needs to consider the installation of the accessories and the installation project in advance;
