PWW-1600GF3-16M33-WPG2062

Product Parameters

Gen-set specifications

Model	WPG2062*73
Standby Rating kVA/kWe	2062/ 1650
Prime Rating kVA/kWe	1875/1500
Voltage V	400/230
Frequency Hz	50
Power Factor	0.8(lagging)
No. of Phases	3
Fuel consumption@25%/ 50% / 75%(L/h）	111.8 / 190.1 / 273.9
Fuel consumption@100% / 110%（L/h）	372.1 / 417.8
Sound@1m（dB (A)）	Open≤103 ；Silence≤95
Ambient temp (℃)	-10～45
Gen-set regulation class	ISO 8528-5 G2
Steady-state voltage deviation	≤±2.5%
Transient voltage deviation （100%sudden power decrease/increase）	≤+25% ；≤-20%
Steady-state frequency band	≤1.5%
Transient frequency deviation from rated frequency （100%sudden power decrease/increase）	≤+12% ；≤-10%

Standard Features

ECU
DC24 Electric starter
WHC9510N
Closed water-cooled
IP23
H type insulation
Air filter
Muffler
Circuit Breaker
Starting batteries
with connective wires
Radiator
Oil Drain Valve
Forklift Groove
Shock Absorber
PMG
Automatic Parallel system
Color: Weichai blue (B,F)/beige canopy and black chassis (L)/ /white (C)
Packaging: Wound film packing

Options

Line Voltage 380V/415V
Line Voltage 440V/480V
Voltage 6.3kV/10.5kV /13.8kV
Single Voltage 220V/230V
Automatic Transfer Switch
Automatic system
Engine Heater (water)
Engine Heater (air inlet)
Alternator heater
External fuel tank（1000L/1500L）
AREP

Engine

Weichai 16M33 series, 16 cylinder, V-type, 4 stroke, radiator cooled engine
Well-designed air handling system with
Dry type, Replaceable paper element air cleaner with restriction indicator
Air to air after cooling
Optimized turbocharger for increased altitude capabilities
High efficiency, large heat area intercooler, reduce the air temperature after the intercooler
High pressure common rail fuel system
Radiator
Electrical starter motor with soft start engagement feature
Intelligent fuel injection technology to start fast guarantee
Battery charging alternator

Engine specifications

Make	WEICHAI
Mode	16M33D1800E310
Rated Speed r/min	1500
Prime Power kW	/
Overload Power kW	1800
Cooling	Liquid cooled
Governor	ECU
Aspiration	Supercharged intercooling
No. of cylinders	16, V-type
Bore (mm) x Stroke (mm)	150×185
Displacement (L)	52.3
Starting system	24VDC
Total coolant capacity (L)	442
Total lubrication system capacity (L)	171
Cooling fan airflow（m³/min）	2340
Exhaust Temperature (°C)	≤750
Recommended air flow @ PRP (m³/min)	116.1
Exhaust back pressure (mBar)	≤75
Radiator design temperature (℃)	50

Control Module Specifications

The WHC9510N is an Auto Mains Failure Control Module

Back-lit LCD display
3 Phase generator and 3 Phase Mains monitoring
Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level
Display warning, shutdown and engine status information
Hours counter provides accurate information for monitoring and maintenance

Alternator

Brushless type, Screen protected, Revolving field, Self excited alternator conforming to IEC 60034-1
Best in class efficiency
Steel casing
Compact design with sealed bearings for longer life and lesser maintenance
IP23 standard protection level
Impregnation on all wound components for better mechanical strength

Alternator specifications

Make	WEICHAI
Alternator Frame	WHA-1875-4/0.4
Exciter Type	Self-excitation
Enclosure	IP23
Voltage regulation	≤±1%
Class of Insulation	H
Winding Pitch	2/3
Rotor	Double bearing

Remarks

Prime power(PRP)

Prime power is defined as being the maximum power which a generating set is capable of delivering continuously while supplying a available electrical load when operated for an unlimited number of hours per year under the agreed operating conditions with the maintenance intervals and procedures being carried out as prescribed by the manufactures.

The permissible average power output, over 24h of operation shall not exceed 70% of the PRP unless otherwise agreed by the RIC engine manufacturer.

Emergency standby power(ESP)

Emergency standby power is defined as the maximum power available during a available electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200h of operation per year with the with the maintenance intervals and procedures being carried out as prescribed by the manufactures.

The permissible average power output, over 24h of operation shall not exceed 70% of the ESP unless otherwise agreed by the RIC engine manufacturer.

Standard Conditions

Standard operating environment: ambient temperature is 5℃~40℃, the altitude is less than 1000m,the relative humidity is less than 90%(25℃), and there is no dust, sand dust, salt fog, mold, condensation environment, etc. If the operating environment exceeds the above requirements, please contact the factory and consult.

Ambient adaptability protection measures for alternators

Ambient type	Ambient description	Measures of protection
General Ambient	The air is clean and dry, the humidity is ≤90%, and the distance from the coastline is ≥ 30km; Non-industrial ambient (chemical splash, acid-base steam, corrosive environment, etc.)	standard configuration
Humid Ambient	The humidity above 90% or condensation occurs	Anti-condensation heating
Saltspray Ambient	Salt fog crystals are produced in seaside (< 30km from the coastline) or island Ambient	Anti-condensation heating;Spray three-proof paint on winding surface;Spraying epoxy protection for parts and structures.
Dust Ambient	The ambient where mining, building construction, desert Gobi or sandstorm occur	Improve the protection level of the alternator to IP44;Install filters.

If you need to use protective measures beyond the standard, please contact the factory and consult.

Special working condition

If the operating conditions of the generator meet the following conditions, please contact the factory and consult.

Multistage parallel operation
Grid-connected operation
As the main power supply, it runs continuously for a long time
The load includes a high power motor type load
Capacitive load
Special ambient such as high temperature, cold and plateau

Typical Enclosed Genset Dimensions

Genset Model	Length A(mm)	Width B(mm)	Height C(mm)	Wet Weight*(kg)	Standard Fuel tank Capacity (L)
WPG2062B73	6500	2750	3058	15800	/
WPG2062C73	40#High Cube Container			30300	1000

*: Include coolant and oil.

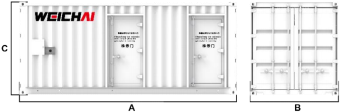

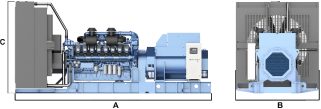

Genset Drawings

Availability Details

Air intake system: Air filter;
Cooling system: Closed-loop cooling radiator;
Fume extraction system: Expansion pipe, muffler and mating flange;
Fuel system: Inlet return port connector, fuel filter;
Lubrication system: Oil pan, oil filter;
Vibration damping system: Rubber shock absorber;
Electrical system: Control screen and switch cabinet:
Silent System: Silencing box/container (silent unit configuration)

Note 1: Silent generator sets (L Series, C Series) can be used directly after installation on the ground, without the need for separate installation accessories, and open generator sets require appropriate installation accessories to install fume extraction systems, etc.

Note 2: The factory does not provide on-site installation accessories such as exhaust straight pipe, elbow, radiator shroud, etc. to the unit itself. The buyer needs to consider the installation of the accessories and the installation project in advance;
