PWW-100GF-WP4.1-WPG125

Gen-set specifications

Standard Features

• Electronic governor
• DC24 Electric starter
• WHC6120NC
• Closed water-cooled
• IP23
• H type insulation
• Air filter
• Muffler
• Circuit Breaker
• Starting batteries
• with connective wires
• Radiator
• Oil Drain Valve
• Forklift Groove
• Shock Absorber
• Color: Weichai blue (B,F)/beige canopy and black chassis (L)
• Packaging: packing case(B,F)

Options

• Voltage 380V/415V
• Voltage 440V/480V
• External fuel tank（1000L/1500L）
• Single Voltage 220V/230V
• Automatic Transfer Switch
• Alternator heater
• Engine Heater (water)
• PMG/AREP

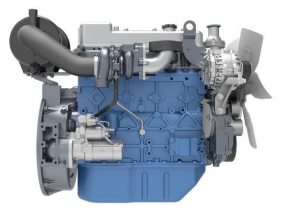

Engine

• Weichai WP4.1 series, 4 cylinder, in-line 4 stroke, radiator cooled engine
• Well-designed air handling system with
• Dry type, Replaceable paper element air cleaner with restriction indicator
• Air to air after cooling
• Optimized turbocharger for increased altitude capabilities
• High efficiency, large heat area intercooler, reduce the air temperature after the intercooler
• Fuel system with A1 class electronic governing n
• Standard integral set-mounted radiator system, designed and tested for 50°C ambient temperature
• First fill of lube oil and coolant
• Electrical starter motor with soft start engagement feature
• Intelligent fuel injection technology to start fast guarantee
• Battery charging alternator
• 2 x 12 V DC batteries

Engine specifications

Control Module Specifications

The WHC6120NC is an Auto Mains Failure Control Module

• Back-lit LCD display
• 3 Phase generator and 3 Phase Mains monitoring
• Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level
• Display warning, shutdown and engine status information
• Hours counter provides accurate information for monitoring and maintenance

Alternator

• Brushless type, Screen protected, Revolving field, Self excited alternator conforming to IEC 60034-1
• Best in class efficiency
• Steel casing
• Compact design with sealed bearings for longer life and lesser maintenance
• IP23 standard protection level
• Impregnation on all wound components for better mechanical strength

Alternator specifications

Remarks

Prime power(PRP)

Prime power is defined as being the maximum power which a generating set is capable of delivering continuously while supplying a available electrical load when operated for an unlimited number of hours per year under the agreed operating conditions with the maintenance intervals and procedures being carried out as prescribed by the manufactures.

The permissible average power output, over 24h of operation shall not exceed 70% of the PRP unless otherwise agreed by the RIC engine manufacturer.

Emergency standby power(ESP)

Emergency standby power is defined as the maximum power available during a available electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200h of operation per year with the with the maintenance intervals and procedures being carried out as prescribed by the manufactures.

The permissible average power output, over 24h of operation shall not exceed 70% of the ESP unless otherwise agreed by the RIC engine manufacturer.

Standard Conditions

Standard operating environment: ambient temperature is 5℃~40℃ , the altitude is less than 1000m,the relative humidity is less than 90%(25℃), and there is no dust, sand dust, salt fog, mold, condensation environment, etc.

If the operating environment exceeds the above requirements, please contact the factory and consult.

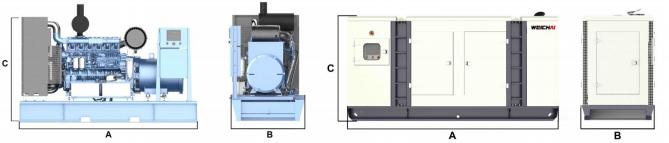

Typical Enclosed Genset Dimensions

*:Include coolant and oil

Genset Drawings
