PWW-300GF-WP12-WPG412.5

Gen-set specifications

Standard Features

• ECU
• DC24 Electric starter
• WEICHAI WHC6120NC
• Closed water-cooled
• IP23
• H type insulation
• Air filter
• Muffler
• Circuit Breaker
• Startingbatteries ( maintenance-free)
• with connective wires
• Radiator
• Oil Drain Valve
• Forklift Groove
• Shock Absorber
• Color: Weichai blue (F)/beige canopy and black chassis (L)
• Packaging: Wound film packing

Options

• Voltage 380V/415V
• Voltage 440V/480V
• Single Voltage 220V/230V
• PMG
• Automatic Transfer Switch
• Automatic Parallel System
• Engine Heater (water)
• Engine Heater (air inlet)
• Alternator heater
• External fuel tank (1000L/1500L)

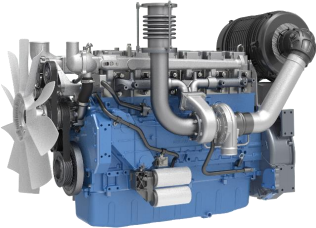

Engine

• Weichai WP12 series, 6-cylinder, in-line 4-stroke, radiator-cooled engine
• Well-designed air handling system with
• Dry-type, replaceable paper element air cleaner with restriction indicator
• Air to air aftercooling
• Optimized turbocharger for increased altitude capabilities
• High efficiency, large heat area intercooler, reduces the air temperature after the intercooler
• Fuel system with A1 class electronic governing
• Radiator system
• Electrical starter motor with soft start engagement feature
• Intelligent fuel injection technology to guarantee fast start
• Battery charging alternator

Engine specifications

Control Module Specifications

Alternator

• Brushless type, screen protected, revolving field, self-excited alternator conforming to IS 60034-1
• Best-in-class efficiency
• Steel casing
• Compact design with sealed bearings for longer life and less maintenance
• IP23 standard protection level
• Impregnation of all wound components for better mechanical strength

The WEIHAI WHC6120NC is an Auto Mains Failure Control Module

• Back-lit LCD display
• 3-Phase generator and 3-Phase Mains monitoring
• Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature, and fuel level
• Display warning, shutdown, and engine status information
• Hours counter provides accurate information for monitoring and maintenance

Alternator specifications

Remarks

Prime Rating: These ratings are applicable for supplying continuous electrical power (at variable load) in the lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

Standby Rating: These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The

Standard Reference Conditions

Standard operating environment: ambient temperature is 5℃~40℃, the altitude is less than 1000m, the relative humidity is less than 90% (25℃), and there is no dust, sand dust, salt fog, mold, condensation environment, etc. If the operating environment exceeds the above requirements, please contact the factory and consult.

Ambient adaptability protection measures for alternators

If you need to use protective measures beyond the standard, please contact the factory and consult.

Special working conditions

If the operating conditions of the generator meet the following conditions, please contact the factory and consult.

• Multistage parallel operation
• Grid-connected operation
• As the main power supply, it runs continuously for a long time
• The load includes a high-power motor-type load
• Capacitive load
• Special ambient such as high temperature, cold, and plateau

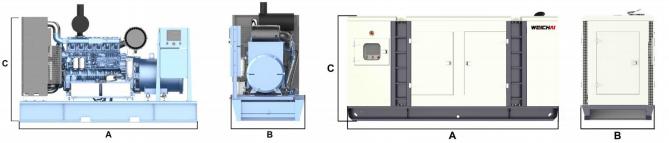

Typical Genset Dimensions

Open genset / Silence genset

*: Include coolant and oil.

Genset Drawings

Open genset

Availability Details

• Air intake system: Air filter;
• Cooling system: Closed-loop cooling radiator;
• Fume extraction system: Expansion pipe, muffler, and mating flange;
• Fuel system: Inlet return port connector, fuel filter;
• Lubrication system: Oil pan, oil filter;
• Vibration damping system: Rubber shock absorber;
• Electrical system: Control screen and switch cabinet:
• Silent System: Silencing box/container (silent unit configuration)

Note 1: Silent generator sets (L Series, C Series) can be used directly after installation on the ground, without the need for separate installation accessories, and open generator sets require appropriate installation accessories to install fume extraction systems, etc.

Note 2: The factory does not provide on-site installation accessories such as exhaust straight pipe, elbow, radiator shroud, etc. to the unit itself. The buyer needs to consider the installation of the accessories and the installation project in advance;
