PWW-200GF-WP10-WPG250

Gen-set specifications

Standard Features

• Electronic governor
• DC24 electric starter
• WEIHCAI WHC6120NC
• Closed water-cooled
• IP23
• H-type insulation
• Air filter
• Muffler
• Circuit breaker
• Starting batteries
• with connecting wires
• Radiator
• Oil Drain Valve
• Forklift Groove
• Shock Absorber
• Color: Weichai blue (B, F)/beige canopy and black chassis (L)
• Packaging: Wound film packing

Options

• Voltage 380V/415V
• Voltage 440V/480V
• Single Voltage 220V/230V
• Automatic Transfer Switch
• Automatic Parallel System
• PMG
• Engine Heater (water)
• Engine Heater (air inlet)
• Alternator heater
• External fuel tank (1000L/1500L)

Engine

• Weichai WP10 series, 6-cylinder, in-line 4-stroke, radiator-cooled engine
• Well-designed air handling system with
• Dry-type, replaceable paper element air cleaner with restriction indicator
• Air to air aftercooling
• Optimized turbocharger for increased altitude capabilities
• High efficiency, large heat area intercooler, reduces the air temperature after the intercooler
• Fuel system with A1 class electronic governing
• Radiator system
• Electrical starter motor with soft start engagement feature
• Intelligent fuel injection technology to guarantee fast start
• Battery charging alternator

Engine specifications

Control Module Specifications

The WEIHAI WHC6120NC is an Auto Mains Failure Control Module

• Back-lit LCD display
• 3-Phase generator and 3-Phase Mains monitoring
• Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature, and fuel level
• Display warning, shutdown, and engine status information
• Hours counter provides accurate information for monitoring and maintenance

Alternator

• Brushless type, screen protected, revolving field, self-excited alternator conforming to IEC 60034-1
• Best-in-class efficiency
• Steel casing
• Compact design with sealed bearings for longer life and less maintenance
• IP23 standard protection level
• Impregnation of all wound components for better mechanical strength

Alternator specifications

Remarks

Prime power(PRP)

Prime power is defined as being the maximum power which a generating set is capable of delivering continuously while supplying an available electrical load when operated for an unlimited number of hours per year under the agreed operating conditions, with the maintenance intervals and procedures being carried out as prescribed by the manufacturers.

The permissible average power output over 24h of operation shall not exceed 70% of the PRP unless otherwise agreed by the RIC engine manufacturer.

Emergency standby power (ESP)

Emergency standby power is defined as the maximum power available during an available electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year, with the maintenance intervals and procedures being carried out as prescribed by the manufacturers.

The permissible average power output over 24 h of operation shall not exceed 70% of the ESP unless otherwise agreed by the RIC engine manufacturer.

Standard Conditions

Standard operating environment: ambient temperature is 5℃~40℃, the altitude is less than 1000m, the relative humidity is less than 90% (25℃), and there is no dust, sand dust, salt fog, mold, condensation environment, etc. If the operating environment exceeds the above requirements, please contact the factory and consult.

Ambient adaptability protection measures for alternators

If you need to use protective measures beyond the standard, please contact the factory and consult.

Special working conditions

If the operating conditions of the generator meet the following conditions, please contact the factory and consult.

• Multistage parallel operation
• Grid-connected operation
• As the main power supply, it runs continuously for a long time
• The load includes a high-power motor-type load
• Capacitive load
• Special ambient such as high temperature, cold, and plateau

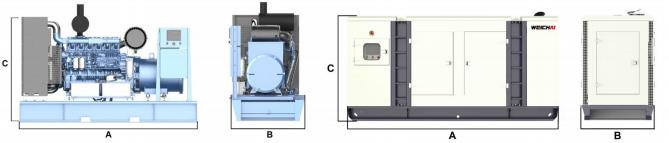

Typical Genset Dimensions

*: Include coolant and oil.

Genset Drawings

Availability Details

• Air intake system: Air filter;
• Cooling system: Closed-loop cooling radiator;
• Fume extraction system: Expansion pipe, muffler and mating flange;
• Fuel system: Inlet return port connector, fuel filter;
• Lubrication system: Oil pan, oil filter;
• Vibration damping system: Rubber shock absorber;
• Electrical system: Control screen and switch cabinet:
• Silent System: Silencing box/container (silent unit configuration)

Note 1: Silent generator sets (L Series, C Series) can be used directly after installation on the ground, without the need for separate installation accessories, and open generator sets require appropriate installation accessories to install fume extraction systems, etc.

Note 2: The factory does not provide on-site installation accessories such as exhaust straight pipe, elbow, radiator shroud, etc., for the unit itself. The buyer needs to consider the installation of the accessories and the installation project in advance;
