PWSC-560GF3(6KTAA25-G38)

product features

// Implementation Standard:

• ISO 8528: AC generator sets driven by reciprocating internal combustion engines
• IEC 60034-1: Basic Technical Requirements for Rotating Electrical Machines
• YD/T 502: Communication Diesel Generator Sets
• GB/T 20136-2006: General Test Methods for Internal Combustion Engine Power Plants

//merit:

◇ Longmen-type engine block with rear-mounted gearbox housing – ensures excellent overall rigidity, minimal vibration, and low noise levels;

◇ Integally forged high-strength crankshaft and high-strength gear-shaped connecting rods – provide superior strength and enhanced reliability;

◇ Dual turbocharger intake system – enables more efficient and thorough air intake, featuring a compact design and attractive appearance;

◇ Unique dual electronic control system: for high-power applications, an electronically controlled high-pressure common rail system supports multiple injection cycles, effectively reducing noise and vibration; for low-power applications, electronically controlled individual pump technology is employed, achieving an optimal balance between high power output and cost-effectiveness;

◇ Complies with the G3 performance rating requirements for generator sets.

// Performance Guarantee:

• ◇ The unit’s transient response is tested in strict compliance with the ISO 8528-5 standard; the maximum single-step load rate can reach up to 60%.
• ◇ Proven product design, quality, and performance integrity
• ◇ All engine systems have undergone prototype and factory testing.

Unit Technical Parameters

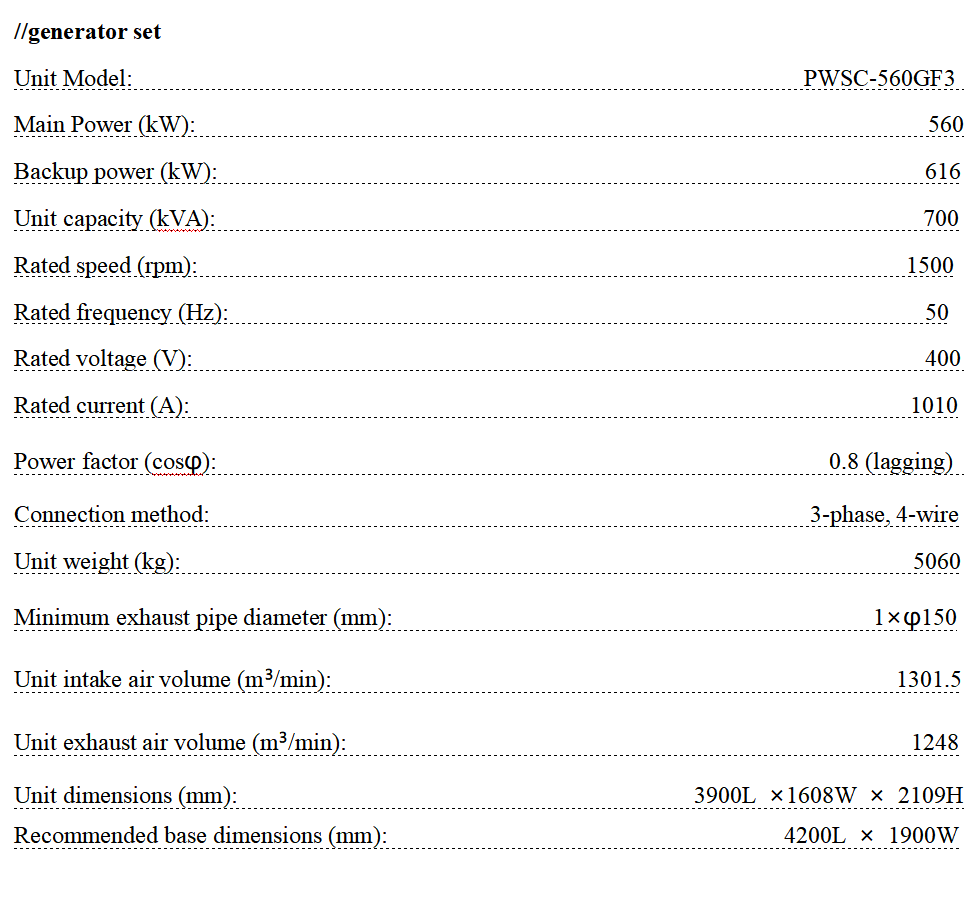

Unit Performance Indicator (G2)

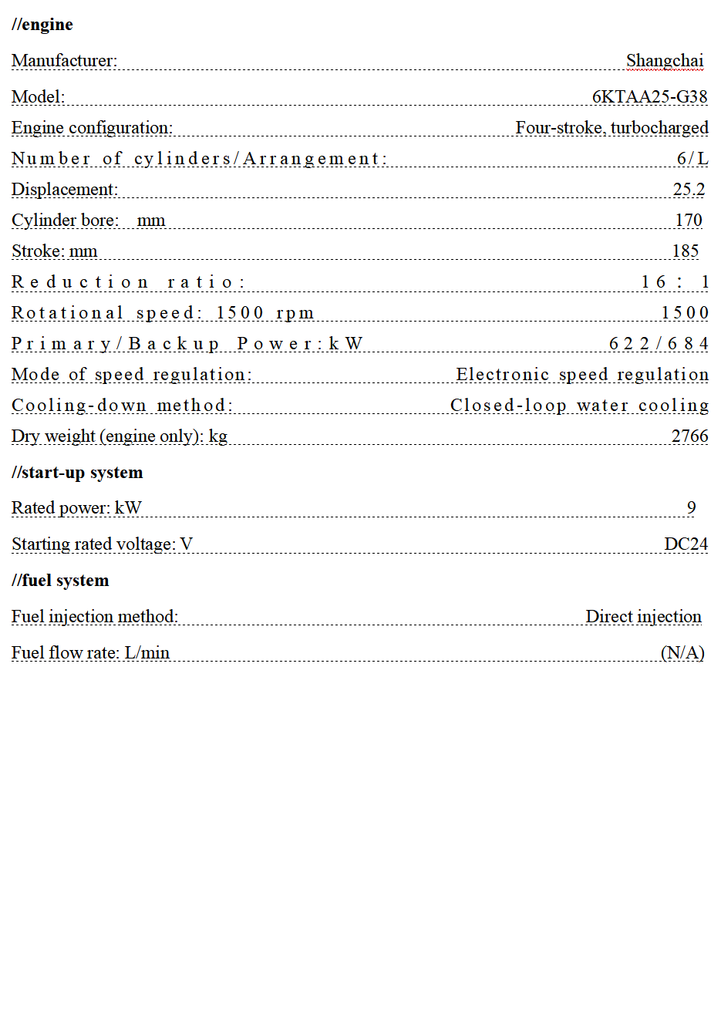

Engine Technical Specifications

Generator Technical Specifications

// Optional generator *50 Hz, AC 400 V, cosφ = 0.8

// Generator General Parameters

Rated speed (rpm):                                                         1500

Rated voltage (V):                                               Three-phase 400 V

Power factor (cosφ):                                                 0.8 (lagging)

Cooling method:                                                       air cooling

Voltage regulator:                                                          AVR

Excitation method:                                               brushless excitation

Number of bearings:                                                  Single-bearing

Connection method:                                              Y-shaped connection

Standard and Optional Unit Configurations

Unit dimensions and weight

* The above diagrams are for reference only; the actual dimensions and weight shall be subject to the final design drawings.

special explanation

// Primary Rated Power (PRP) refers to the maximum power at which the generator set can operate continuously under variable load conditions under standard environmental conditions (atmospheric pressure, relative humidity, and ambient temperature); an overload of up to 10% is permitted for a period of 1 hour every 12 hours.

// Operating Conditions and Power Correction:

Altitude: ≤1000 m (if>1000 m, a power correction shall be applied);

Ambient Temperature: 40°C (if>40°C, a power correction shall be applied);

Relative Humidity: ≤60%.

When the actual field operating conditions of the diesel generator set do not meet the above requirements, the output power of the generator set shall be corrected; for the final correction factor, please refer to the detailed technical specifications for the corresponding engine and generator.
